A150 velvet hardcoated PET Film for Membrane Switch
Applicable: IML
Regular width:610mm
This is an economical grade of velvet hard coated PET film,to replace V200 and F200. Surface is a little shiny than F & V grade.
Excellent property for IML.
PET printing film with excellent rub resistance,scratch resistance and chemical testing resistance.
And with long life-span and buckling resistance on the switch panel.
easy convex and easy printing on the transparent window, with good heat stability.
When printing several kinds color, it can solve topping problem. The Material printing surface has been dealt with special chemical treatment, so with excellent adhesion to printing ink.
| Type | A Series | F Series | V Series | S Series |
| Surface | Single Velvet Printing Film IML | A Perfect Substitute for Autotype Brand IMD,IML | Transparent Single Brush PET Film IMD,IML |
| Remak | Blue printing surface protective film |
| Application | Membrane switch, Instrument panel,Nameplate, Household appliance panel,remote control switch |
Main advantages:
l Excellent performances of friction resistance, scratch resistance and chemical resistance.
l Long lifespan and bending resistance
l raisable
l Good thermostability, easy to print , free of overdrying while processed with multicolors.
With window liquid easy open clear window
l With special chemical treatment of printing surface, it owns strong adhesion.
Properties:
| Test methods | Experiment Methods | Propertities |
| N60 | 60A | N30 |
| Surface hardness | JIN-K-5400 | Pencil Rigidity
Steel grit brush | 2h
few | 2h
few | 2h
few |
| Adherence | | adhesive | 100/100 | 100/100 | 100/100 |
| Waterproof | 1h | Boiling | 0 | 0 | 0 |
| Temperature cycling | -20~~80°C | Heating | 0 | 0 | 0 |
| Weather fastness | 300h | Climate Test | 0 | 0 | 0 |
| Mechanical Properties | JIS-C-2318 | tensile strength (kgf/15mm) | MD33
TD30 | MD33
TD30 | MD33
TD30 |
| JIS-C-2318 | Tensile degree / % | 125
130 | 125
130 | |
| JIS-P-8112 | collapse strength /(kgf/a) | 16.50 | 16.50 | |
| Optical Properties | JIS-K-7105 | Haze degree | 55.20 | 52.90 | 32.20 |
| JIS-K-7105 | Light transmittance | 90.00 | 91.00 | 90.00 |
Applications:
• membrane switch,
• instrument panel,
• nameplate,
• household appliances panel,
• remote control.
Thanks for your interest in our material and service. To get quick quotation and response,please kindly mention below information in your inquiry:
1.Your application
2.Thickness
3.Color
4.Quantity
5.Your company information
Once we get your detail inquiry,we guarantee to contact you within 12 hours with efficient information.
Thank you for your cooperation.
|
|

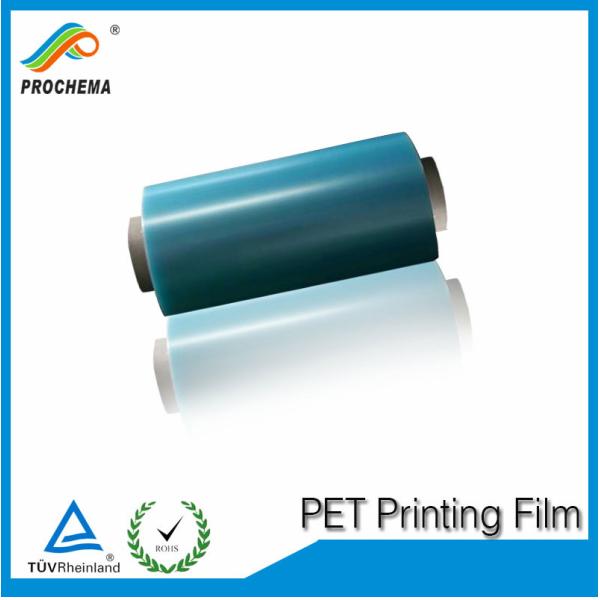

A150 velvet hard coated PET film economical grade Images
|
